Ibis Exie XT

Ibis Exie XT
  • Color: Cheat-O Orange
  • Color: Bug Zapper Blue
$7,999.00 - $9,399.00
Please select options
Order now and pick up in-store for free

Details

The Exie is a World-Cup capable cross-country race bike that flat out shreds. With a sub 2,000g frame weight and dw-link suspension, it offers a stunning combination of pedaling efficiency and downhill performance. We designed, built, and test­ed it in our Santa Cruz factory, which is pow­ered by the warm Cal­i­for­nia sunshine.

BUILT BY US
We build each Exie in our North­ern Cal­i­for­nia fac­to­ry. This gives us the utmost con­trol, which enable us to hit remark­able frame strength, stiff­ness, and weight tar­gets for this frame.

SIZE SPECIFIC SEAT ANGLES
Whether you're rac­ing short track or on a mul­ti day epic, the Exie's seat tube angles allows you to har­ness your strongest mus­cles, while reduc­ing any poten­tial knee or wrist strain. We've also steep­ened the seat tube angles as the frames get larg­er, to allow rid­ers with dif­fer­ent inseams to achieve the same rid­ing positions.

DW-LINK SUSPENSION
Don't squan­der a sin­gle watt. Our dw-link sus­pen­sion plat­form offers incred­i­ble climb­ing effi­cien­cy and trac­tion along with plush, down­hill-crush­ing goodness.

RIDE MORE, WRENCH LESS
We use bush­ings where it makes sense and bear­ings where it doesn't. The IGUS bush­ings in our low­er link are lighter, stiffer, and vir­tu­al­ly main­te­nance free. We've also added fea­tures like a thread­ed bot­tom brack­et to help make any future main­te­nance easy.

INTERNAL CABLE ROUTING
Inter­nal cable rout­ing doesn't have to be a pain. We've added inter­nal tubes to our tubes, no pick­sets, flash­lights, or swear words required.

2.4” TIRE CLEARANCE
You can run over­built, chunky tires; you can run light, big vol­ume fast tires, but what­ev­er you run, you're not lim­it­ed by width.

2X BOTTLE CLEARANCE
The Exie has clear­ance for two water bot­tles inside the front tri­an­gle on every size frame.

INTEGRATED CHAIN GUIDE
Drop the ham­mer, not your chain.

SEVEN YEAR WARRANTY
If it's our fault, we'll fix it. Sim­ple as that.

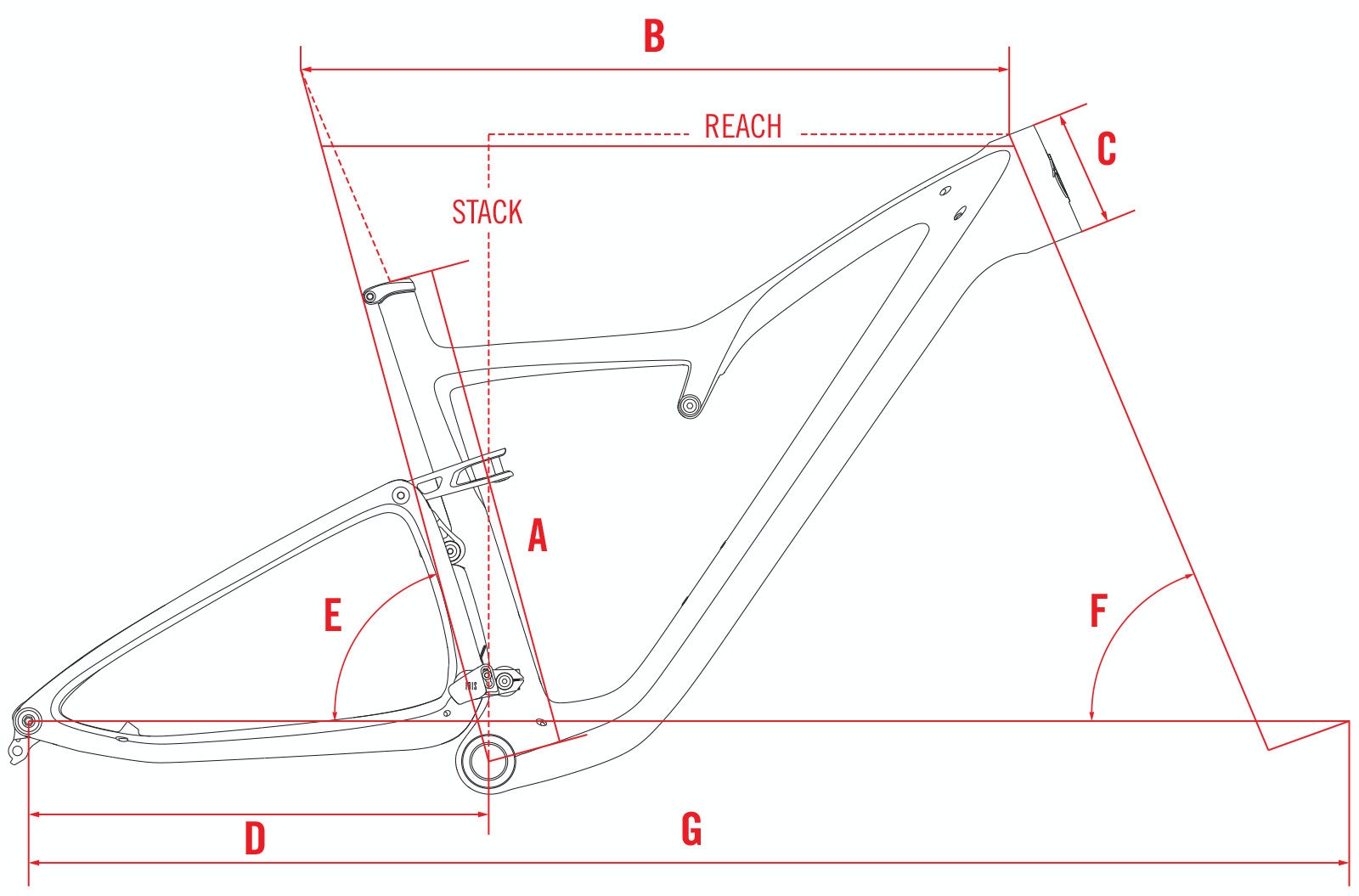

Geometry

Geometry Chart:
SIZESMALLMEDIUMLARGEX-LARGE
Seat Tube Length (mm) 356 406 457 508
Top Tube Length (mm) 584 613 644 675
Head Tube Length (mm) 85 95 110 135
Chainstay Length (mm) 435 435 435 435
Seat Tube Angle 73.8° 73.8° 74.8° 75.9°
Head Tube Angle 67.2° 67.2° 67.2° 67.2°
Wheelbase (mm) 1128 1158 1202 1253
Stack (mm) 582 592 606 630
Reach (mm) 413 439 478 519
Standover (mm) 722 727 748 754
Trail (mm) 110 110 110 110
BB Drop (mm) 28 28 28 28
Sizes:
Small 152–165CM
Medium 163–175CM
Large 173–185CM
X-Large 183–198CM

Specs

Frame Carbon Fiber
Fork Fox 34 SC Fit 4 Remote 120mm, 44mm rake, Kabolt
Rear Shock Fox Float DPS Remote w/ adjust, 190 x 45, light rebound and compression
Wheels Select from dropdown above
Tires Maxxis Recon Race 29" x 2.4" Exo/TR WT
Bottom Bracket Shimano XT MT800
Crankset Shimano XT M8100, 30t Alloy Ring S/M: 170mm, L/XL: 175mm
Shifters Shimano XT M8100 12 speed
Rear Derailleur Shimano XT M8100 Shadow Plus 12 speed
Cassette/Freewheel Shimano XT 10-51
Chain Shimano XT M8100 12 speed
Brakes Shimano XT M8100, 2 Piston
Rotors Shimano SM-RT86 180/160
Handlebars Ibis 800mm Hi Fi Bar
Tape/Grips Lizard Skin Charger
Stem Industry Nine A318 S/M: 40mm, L/XL: 50mm S/M 40mm, L/XL 50mm
Headset Cane Creek 40: IS 41/28.6 upper, IS 52/40 lower
Seatpost Bike Yoke Revive Dropper S: 125mm, M: 160mm, L/XL: 185mm. Note there is a 250lb rider weight limit on this post.
Saddle WTB Silverado 142

* Subject to change without notice.

Videos

Part Numbers

Option UPC MPN Store SKU
Cheat-O Orange / Small / Ibis 933 Aluminum 810081727457 0:EXC1ORSXTAL93
Cheat-O Orange / Small / Ibis S28 I9 Carbon 810081727464 0:EXC1ORSXTI928
Cheat-O Orange / Small / Ibis S28 Logo Carbon 810081727471 0:EXC1ORSXTLG28
Cheat-O Orange / Medium / Ibis 933 Aluminum 810081727617 0:EXC2ORSXTAL93
Cheat-O Orange / Medium / Ibis S28 I9 Carbon 810081727624 0:EXC2ORSXTI928
Cheat-O Orange / Medium / Ibis S28 Logo Carbon 810081727631 0:EXC2ORSXTLG28
Cheat-O Orange / Large / Ibis 933 Aluminum 810081727778 0:EXC3ORSXTAL93
Cheat-O Orange / Large / Ibis S28 I9 Carbon 810081727785 0:EXC3ORSXTI928
Cheat-O Orange / Large / Ibis S28 Logo Carbon 810081727792 0:EXC3ORSXTLG28
Cheat-O Orange / X-Large / Ibis 933 Aluminum 810081727938 0:EXC4ORSXTAL93
Cheat-O Orange / X-Large / Ibis S28 I9 Carbon 810081727945 0:EXC4ORSXTI928
Cheat-O Orange / X-Large / Ibis S28 Logo Carbon 810081727952 0:EXC4ORSXTLG28
Bug Zapper Blue / Small / Ibis 933 Aluminum 810081727389 0:EXC1BUSXTAL93
Bug Zapper Blue / Small / Ibis S28 I9 Carbon 810081727396 0:EXC1BUSXTI928
Bug Zapper Blue / Small / Ibis S28 Logo Carbon 810081727402 0:EXC1BUSXTLG28
Bug Zapper Blue / Medium / Ibis 933 Aluminum 810081727532 0:EXC2BUSXTAL93
Bug Zapper Blue / Medium / Ibis S28 I9 Carbon 810081727549 0:EXC2BUSXTI928
Bug Zapper Blue / Medium / Ibis S28 Logo Carbon 810081727556 0:EXC2BUSXTLG28
Bug Zapper Blue / Large / Ibis 933 Aluminum 810081727693 0:EXC3BUSXTAL93
Bug Zapper Blue / Large / Ibis S28 I9 Carbon 810081727709 0:EXC3BUSXTI928 210000011881
Bug Zapper Blue / Large / Ibis S28 Logo Carbon 810081727716 0:EXC3BUSXTLG28
Bug Zapper Blue / X-Large / Ibis 933 Aluminum 810081727853 0:EXC4BUSXTAL93
Bug Zapper Blue / X-Large / Ibis S28 I9 Carbon 810081727860 0:EXC4BUSXTI928
Bug Zapper Blue / X-Large / Ibis S28 Logo Carbon 810081727877 0:EXC4BUSXTLG28
