Norco Search C Red AXS XPLR

Norco Search C Red AXS XPLR
  • Color: Raw Fast Black
$9,499.00
Color: Raw Fast Black
Size: Select size
Wheel Size: 700c
Please select options Unavailable
Order now and pick up in-store for free

Details

Search C Red XPLR features new-school gravel geo fit for a fast, lively, confident ride on any terrain. With a taller headtube, slacker head angle, and longer reach, it’s more stable on rough terrain and ready to tackle steeper grades with ease.

The updated, longer fork adds stability, and the new geometry is compatible with suspension forks if you want to add some extra cushion. The frame is UDH compatible and supports fitments for all the latest wide-range 1x drivetrain technologies.

Fully guided cable routing and a fully threaded BSA bottom bracket makes maintenance a breeze.

- Confidence-inspiring updated geometry.
- Carry everything you could need with easy-access downtube storage.
- Carbon fork, suspension ready.
- Updated features for simplified maintenance.
- Wider tire clearance for more traction when you need it.
- Versatile mount options.
- No Other Way Limited Lifetime Warranty.

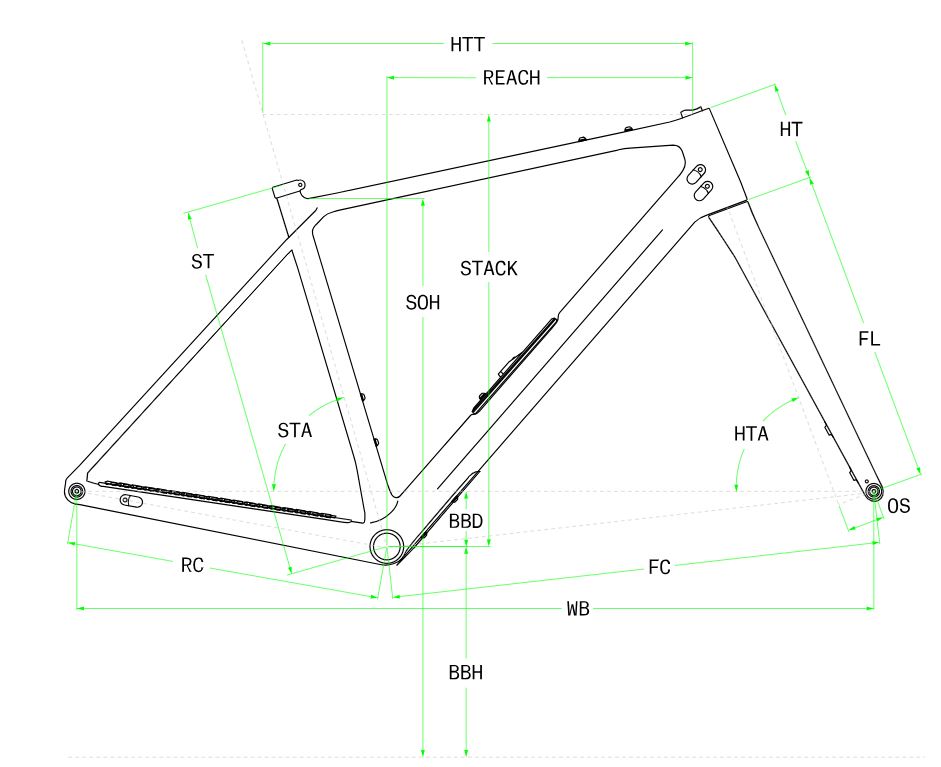

Geometry
Sizes:
12345
Wheel Size 700c 700c 700c 700c 700c
Reach 385 400 415 430 445
Stack 554 564 587 611 634
HTA Head Tube Angle 69.5
OS Fork Offset 51
ST Seat Tube Length 440 475 510 545 580
STA Effective Seat Tube Angle 74.5 74.25 74 73.75 73.5
RC Rear Centre Length 425 427.5 430
BB Bottom Bracket Drop 75
BBH Bottom Bracket Height 285
HTT Horizontal Top Tube 539 559 583 608 633
WB Wheelbase 1037 1056 1082 1108 1132
SOH Standover 691 725 758 791 824
HT Head Tube Length 100 110 135 160 185
Trail 80
Maximum Post Insertion 210 240 290
Stem Length 70
Crank Length 165 170 172.5
Tire Size 40c — 50c
Water Bottle Compatible 3 x 750 mL

Specs

Frame Search XR Carbon w/ DT Storage
Fork Search XR Carbon, 51mm Offset, 12x100mm TA
Rims Double Butted, Sapim Straight-Pull
Hubs Front Hub: SRAM Dub BSA 68 Road Wide/Rear Hub: Easton X5, 12x100, 28H, C-lock
Spokes Easton X5, 12x142, XDR, 28H, C-lock
Tires Schwalbe G-One R Evo, Super Race, 700x45c
Bottom Bracket SRAM Red Flat Top, 118L
Crankset SRAM XPLR XG-1391, 10-46T, 13sp
Cassette/Freewheel SRAM Red AXS HRD Shift-Brake System
Chain SRAM Red XPLR AXS Rear Derailleur, 13sp
Brakes SRAM Paceline X, 160mm, C-lock
Rotors SRAM Red AXS HRD Shift-Brake System
Brake Levers SRAM Red AXS HRD Shift-Brake System
Handlebars Easton EA90, 70mm, 31.8mm clamp, +/- 7Deg
Tape/Grips Easton EC90 AX, 42cm (S1,S2,S3) - 44cm (S4) - 46cm (S5), 16Deg
Stem Easton EC90, 27.2mm, 0Deg Offset, 350mm length
Headset FSA Integrated Sealed Bearings No. 42 ; Tapered 1-1/8" - 1.5" ( IS42/28.6 | IS52/40 )
Seatpost Norco Aluminum, 31.8mm ID
Saddle SRAM Red AXS HRD Shift-Brake System
Pedals SRAM RED AXS Wide Power Meter 42T, 49CL, 165cm (S1,S2) - 170cm (S3,S4) - 172.5cm (S5)
Accessories & Extras Norco Storage Bag - Ocean-X Water Resistant

* Subject to change without notice.

Part Numbers

Option UPC MPN
Raw Fast Black / SZ1 / 700c 058817724107 0400215854
Raw Fast Black / SZ2 / 700c 058817724114 0400215855
Raw Fast Black / SZ3 / 700c 058817724121 0400215856
Raw Fast Black / SZ4 / 700c 058817724138 0400215857
Raw Fast Black / SZ5 / 700c 058817724145 0400215858
